Design Notes

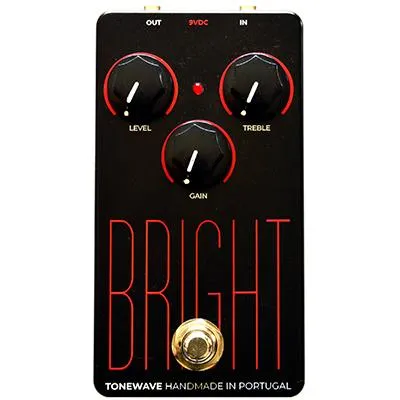

BRIGHT was designed around a pair of jrc4558 opamps and tweaked to achieve mid/high gain, fully saturated distortion but keeping all the clarity and brightness of the top end frequencies.

Technical Specs

In/Out/DC Jacks: Top Mounted

Controls: Level, Treble, Gain

Dimensions (with knobs and jacks): 127mm X 65mm X 54mm

Current Draw Bypassed:  13mA

Current Draw Engaged:  55mA

Bypass Type: Buffered

Switching Type: Soft-Switch Relay Switching System

Power Requirements: 9 Volts DC with 2.1mm negative center barrel
