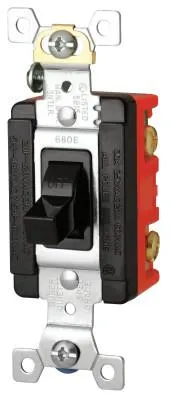

• Compact design provides extra wiring room for easy, fast installation
• Easy-to-read electrical ratings on rugged steel mounting straps ensure accurate identification
• Highly visible ƒ??ON/OFFƒ?� markings on large, rugged toggles make the switch easy to operate and reduce the risk of errors
• Cam and roll design provides dependable, trouble-free switch action
• Distinct wire pockets and thick-wall arc barriers prevent strands from straying
• Robust, single-piece, moveable and stationary contact arms with large silver-cadmium buttons limit heat build-up for excellent continuity and long life
• Screw and clamp or box lug terminals to meet individual project requirements
• Pack of 1 EA
• Manufacturer part number: AH6808UDAC
• UPC Code: 40893123905
• Meets UL 508

Specifications:

• Amps [Nom] = 20.00 A; 30.00 A
• Body Cover Material = Glass-Filled Nylon
• Cable/Wire Size [Max] = 10.000 AWG
• Cable/Wire Size [Min] = 14.000 AWG
• Color = Brown
• Height [Nom] = 2 1/2 in
• Length [Nom] = 4 in
• Voltage [Nom] = 600.00 V; 250.00 V
• Width [Nom] = 2 1/2 in
• Wt. = 0.40 lb
• This is a normal stocking item.
