• Compact design provides extra wiring room
• High impact-resistant, glass-filled nylon construction
• Easy-to-read electrical ratings on rugged steel mounting straps
• Highly visible ƒ??ON/OFFƒ?� markings on large, rugged toggles
• Distinct wire pockets and thick-wall arc barriers prevent strands from straying
• Screw and clamp or box lug terminals to meet individual project requirements
• Two sets of contacts per pole distribute load and make/break action for long, reliable duty
• Pack of 1 EA

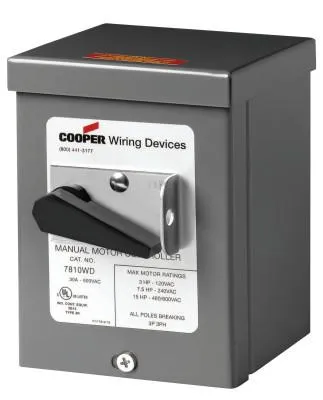

• Manufacturer part number: AH7810WD
• UPC Code: 40893006055
• Horsepower ratings - 3HP @ 120VAC, 7.5HP @ 240VAC, 15HP @ 480VAC, 15HP @ 600VAC; Meets NEMA 3R, UL 508

Specifications:

• Amps [Nom] = 30.00 A
• Body Cover Material = Steel
• Cable/Wire Size [Max] = 10.000 AWG
• Cable/Wire Size [Min] = 14.000 AWG
• Color = Gray
• Height [Nom] = 3 1/2 in
• Length [Nom] = 5 in
• Voltage [Nom] = 600.00 V
• Width [Nom] = 3 in
• Wt. = 1.60 lb
• This is a normal stocking item.
